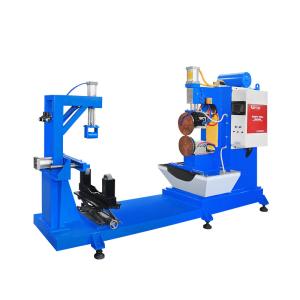

Hwashi High Quality Stainless Steel Automatic Double Station Circular Rolling Seam Welding Machine Manufacturer for Oil Tank

Name: Hwashi High Quality Stainless Steel Automatic Double Station Circular Rolling Seam Welding Machine Manufacturer for Oil Tank
Brand: Hwashi
Price: 1 USD

Quality Hwashi High Quality Stainless Steel Automatic Double Station Circular Rolling Seam Welding Machine Manufacturer for Oil Tank wholesale

Brand Name : Hwashi

Model Number : WL-AMF-160K

Certification : CE,CCC,ISO

Place of Origin : China

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 50 sets per month

Delivery Time : 7-30 working days after received your payment

Packaging Details : sea worthy wooden package

Product Name : Hwashi High Quality Stainless Steel Automatic Double Station Circular Rolling Seam Welding Machine Manufacturer for Oil Tank

Condition : New

Abrasive Belt Width : 50mm

Welding Speed : 0.5-5m/min

Welding Material : Carbon Steel/Stainless Steel

Weight : 300kg

Control System : PLC

Welding Width : 5-20mm

Minimum Welding Thickness : 0.2mm

Voltage : 380V,2 Phase,50/60Hz

Machine Type : Resistance Welding Machine

Service Life : 8-10 years

Welding Mode : Continuous/Intermittent

Duty Cycle Rate : 20%

Contact Now

Hwashi High Quality Stainless Steel Automatic Double Station Circular Rolling Seam Welding Machine Manufacturer for Oil Tank

Product Description

This production line is suitable for oil tank manufacturer, including the straight seam welding machine, the circular seam welding machine, the spot welding machine, the pressure test welding machine. The production line can customzied according to your product size and requirement. If you need our help, just send us your product specification and drawings.

1. Straight Seam Welding Machine(for the straight line welding of the oil tank)

2. Circular Seam Welding Machine(for the two ends welding of oil tank)

3.Long Arm Spot Welding for the Middle Plate

4.Pressure Test Machine(for testing if the seal of oil )

Specification

Model	WL-FS-200K	WL-FS-MF160K
Input Voltage	380V±10% 50Hz	380V±10% 50Hz
Input Power	200KW	160KW
Max Short Circuit Current	38000A	40000A
Rated Duty Cycle Rate	25%	50%
Welding Stored Models	16 types	101 types
Electrode Pressure	9kN(I),1.8kN(II)	9kN(I),1.8kN(II)
Rated Bleed Pressure	0.6MPa	0.6MPa
Gas Consumption	5m3/h	5m3/h
Water Source Pressure	0.2Mpa	0.2Mpa
Cooling Water Consumption	200L/H	200L/H
Welding Wheel Diameter	200mm	200mm
Welding Wheel Width	3mm	3mm
Welding Wheel Rotate Speed	800-4000mm/min (adjustable)	800-4000mm/min (adjustable)
Welding Wheel Throat Depth Distance	1000mm	1000mm
Upper and Lower Welding Wheel Distance	100mm	100mm
Feeding Rack Rotate Speed	500-1000mm/min (adjustable)	500-1000mm/min (adjustable)
